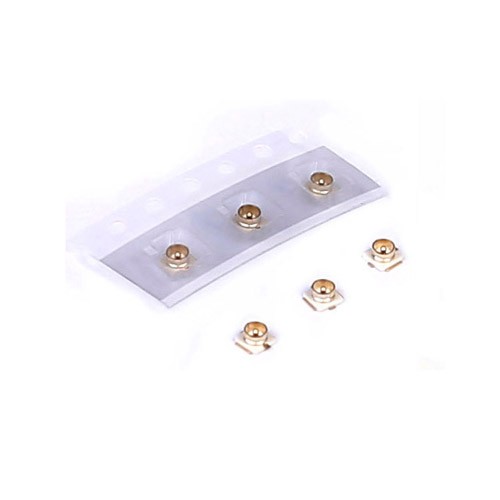

Micro coaxial RF Connectors MHF I

Part Number: USS RF I
1.1 Frequency Range: 0~6GHz
1.2 Impedance: 50±5Ω
1.3 Insulation Resistance: 500MΩ Min
1.4 Dielectric Withstanding Voltage: 200V AC/60s
1.5 Inner Contact Resistance: 20mΩ Max
1.6 Outer Contact Resistance: 10mΩ Max
1.7 VSWR: ≤1.3 ( DC~6GHz )
1.8 Mechanical Durability: 30 Cycles
1.9 Relative Humidity: 95%R.H.Max
2.0 Operating Temperature: -40°C ~ +85°C
